Esp8266
What is the ESP8266⌗
The ESP8266 is a low-cost Wi-Fi microchip, with a full TCP/IP stack and microcontroller capability, produced by Espressif Systems1 in Shanghai, China.
What version to get⌗
Hint: Its the CP2102 one!
Don’t save 50 cent on a board with the CH340G chip, its the cheap copy one - Get CP2102 onces. 👍
The biggest difference is the USB interface.
The real one uses a CP2102 USB to UART bridge. The copy uses a CH340G chip.
The CH340G is notoriously unstable and liable to die at a moments notice.
The CP2102 is far more reliable.
I recently accidentally nuked a Wemos D1 Mini pro which has the same CP2102 on it with 12V.
It took out the voltage regulator. It took out the ESP8266 chip.
I replaced both those, and the CP2102 was proved to still be working fine.
More than could be said for a CH340G - glance at one of those wrong and they die.
Source: stackexchange2

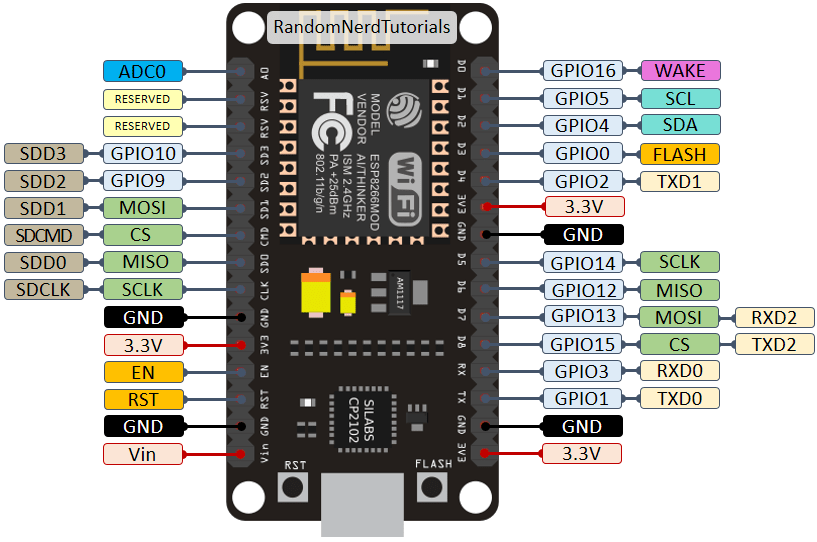

Pinout of the ESP8266⌗
Stuff to make⌗
A list of project where the ESP8266 controller would make sense.
- Door & window sensors.
- LED strip controller with WLED.
- Requires WLED compatible LED strips like the WS2813 onces.
- Weather / Enviorment monitor for Home Assistant
(DTH11 / DTH22 / AM2302) - Loads of projects on the ESPHome website.
ESPHome is custom firmware for the ESP8266 / ESP32 board with a lot of integrations. - Tasmota custom firmware based on MQTT communication.
Custom firmware for the ESP8266 / ESP32 board with webui, OTA updates and much more.
ESP8266 Overview
Espressif Systems. Retrieved 2017-10-02. ↩︎stackexchange URL
Difference between these two nodemcu boards. ↩︎
